Device combination

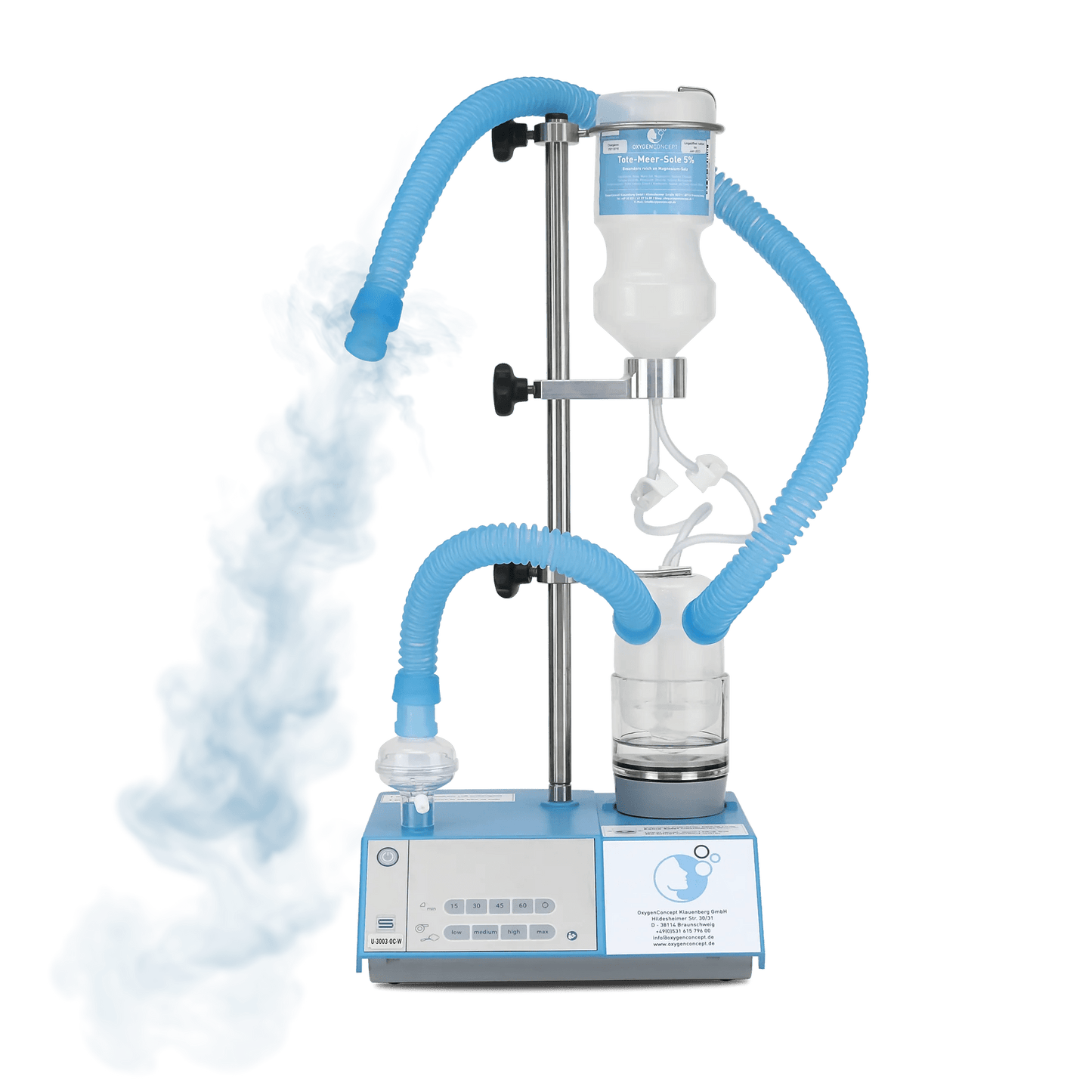

Ultrasonic nebuliser for respirable brine mist

Scope of delivery:

• 1 Ultrasonic nebuliser Horse
• 1 liter of OXYGEN Dead Sea Salt-Brine 5 %
• 1 Bacteria filter
• 1 Silicon tube each 40cm and 100 cm
• 1 liter of distilled water for the transducer
• 1 transfer system
• 1 sealing plug
• 1 Kendall system (nebuliser chamber)
• 1 wall bracket
• Manual
• Special equipment available at extra charge

Technical specifications:

Nebulisation performance	0.5-3ml of water per minute
Aerosol spectrum	1 - 7 µm (65%), 1 - 5 µm (45%)
Room size	up to 40 m3
MMAD	5.3 µm
Frequency	1.68MHz
Air volume	1.5-10 liters per minute (with bacterial filter)
Time preselection	15 / 30 / 45 / 60 minutes, continuous operation
Operating voltage	230 V AC / 50 Hz
Operating mode	continuous operation
Protection class	I
Degree of protection	IP 21
Warranty	24 months



Optional:

• You can also order a replacement transducer at the special price of EUR 312.00 net. The length of the silicone tube can also be optionally adjusted. When ordering, please specify the wall thickness for the appropriate wall bracket. Additional costs apply for optional lengths and increasing thicknesses. Terms of payment: payment in advance Delivery time about 2 weeks

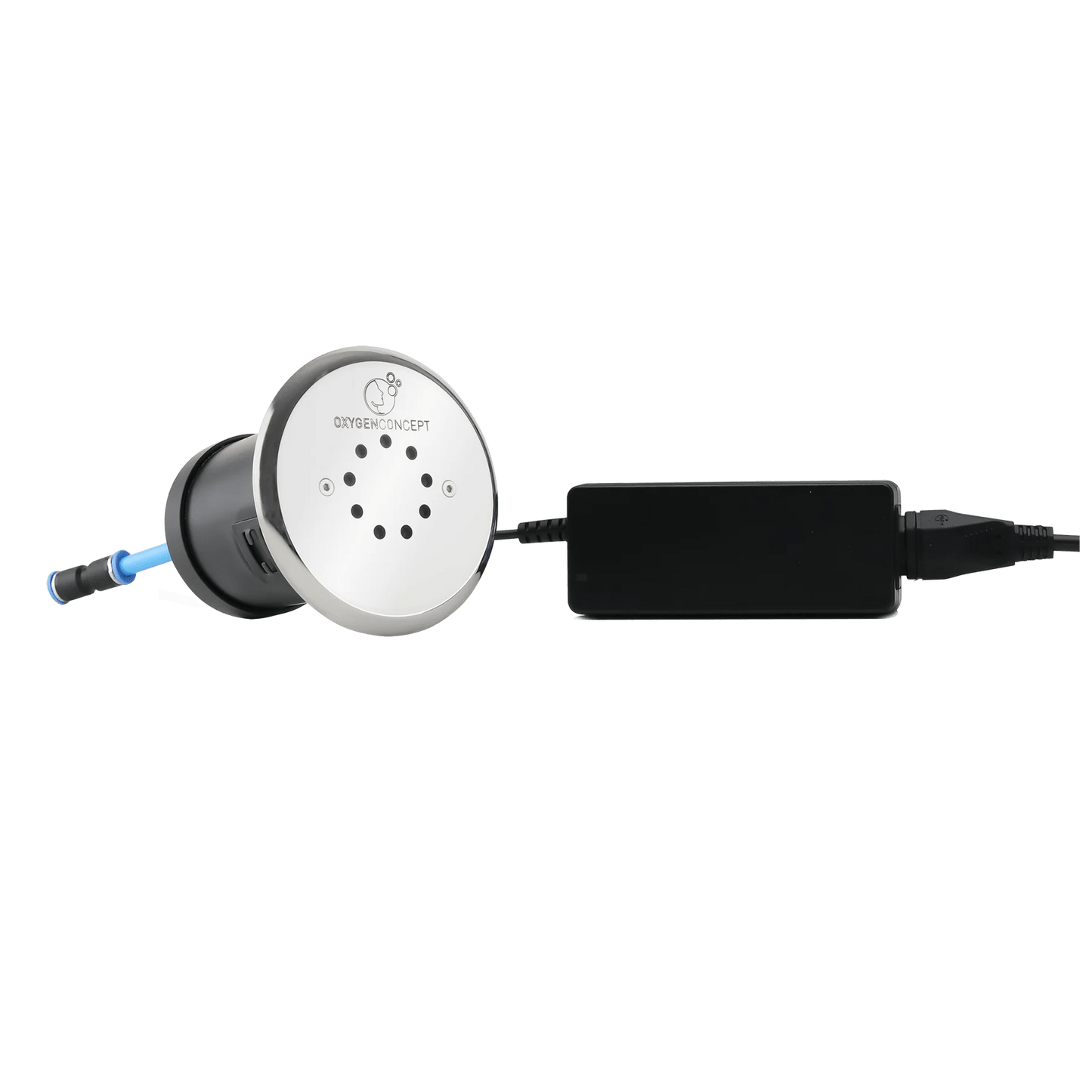

Ionisation Module

New with visual function control, 9 ionization needles instead of 4, over 20 million ions/second

Scope of delivery:

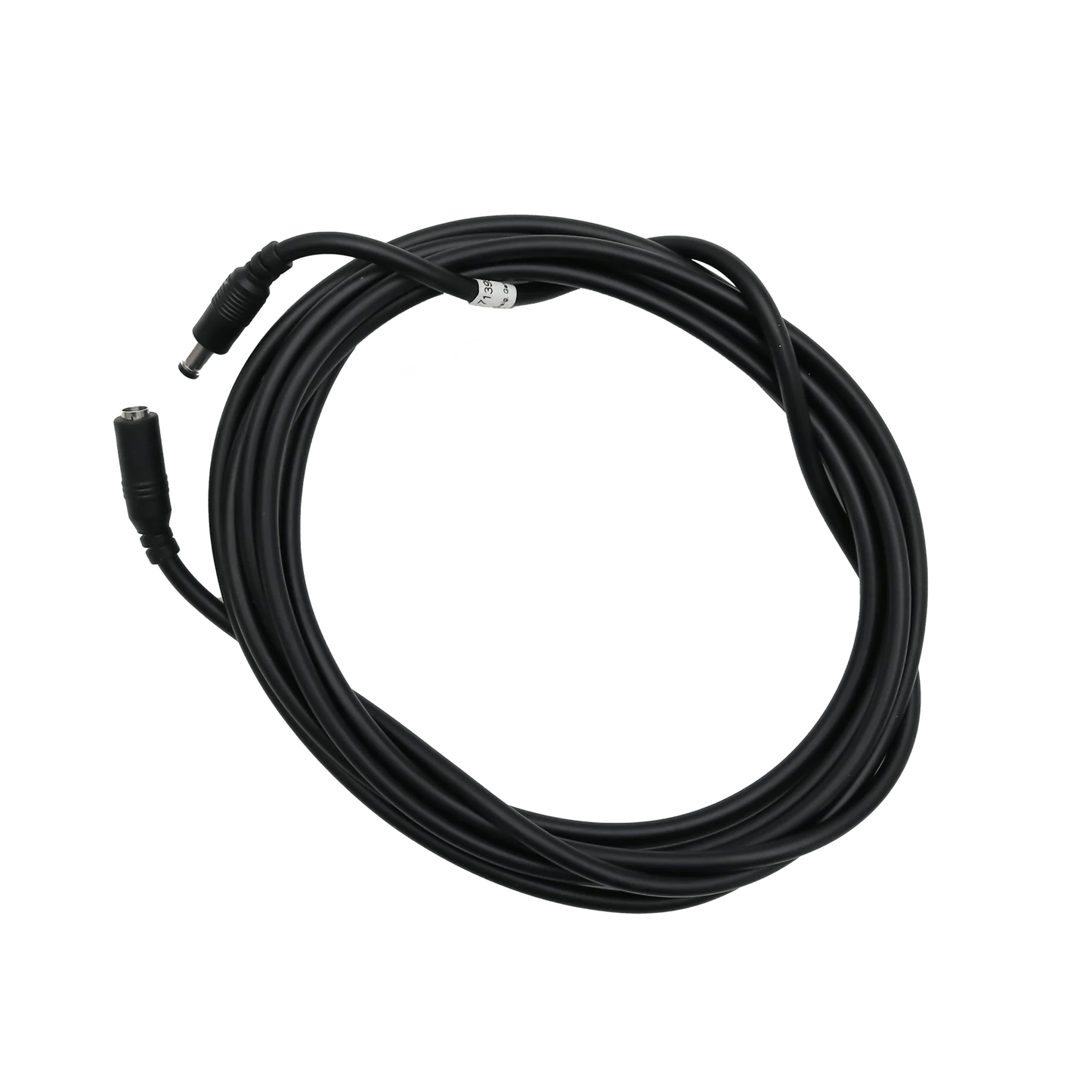

• Air tube and power cable in desired length
• Power adapter
• Manual

Technical specifications:

Input Voltage	12Vdc
Power consumption	1 W
High voltage unit	II
Protection class	EN 73/23/EEC
Weight	approx. 300 grams
Dimension	Ø 88 mm, h 150 mm (without connection box)
Ambient temperature	10 – 35 °C
Humidity	15-90% RH non-condensing
Noise level	< 50dB(A), depending on the air flow

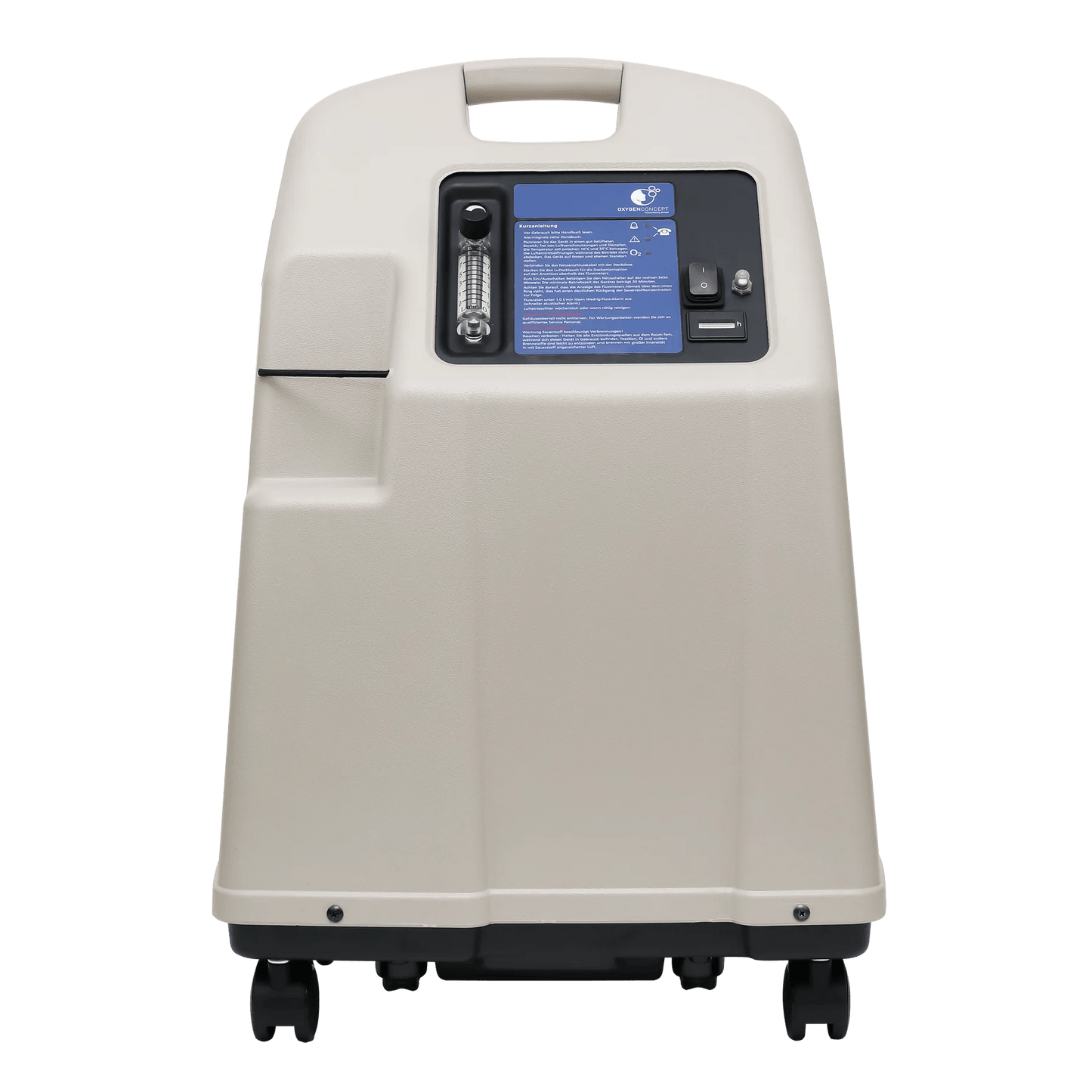

Oxigen Concentrator

Increase in oxygen content for more energy and increased performance

Scope of delivery:

• 1 Oxygen Concentrator Exklusive 9 Liter
• 1 Ionisation Module
• Air tube and power cable in desired length (max. 20 m) – standard 3m included
• Manual

Technical specifications:

Air volume	1 – 9 liters / min
Characteristics	O2 concentration 90% up to 95% oxygen monitor
Ionisation	20 million negative ions / cm3 / sec per ionisation module
Operating voltage	230 volts AC / 50 Hz
Power consumption	460W
Noise development	< 50dB(A), depending on the airflow
Dimensions	47cm W x 67cm H x 37cm D

Technical changes reserved!

Optional:

• You can also order a replacement transducer at the special price of EUR 312.00 net. The length of the silicone tube can also be optionally adjusted. When ordering, please specify the wall thickness for the appropriate wall bracket. Additional costs apply for optional lengths and increasing thicknesses.

Terms of payment: payment in advance Delivery time about 2 weeks
