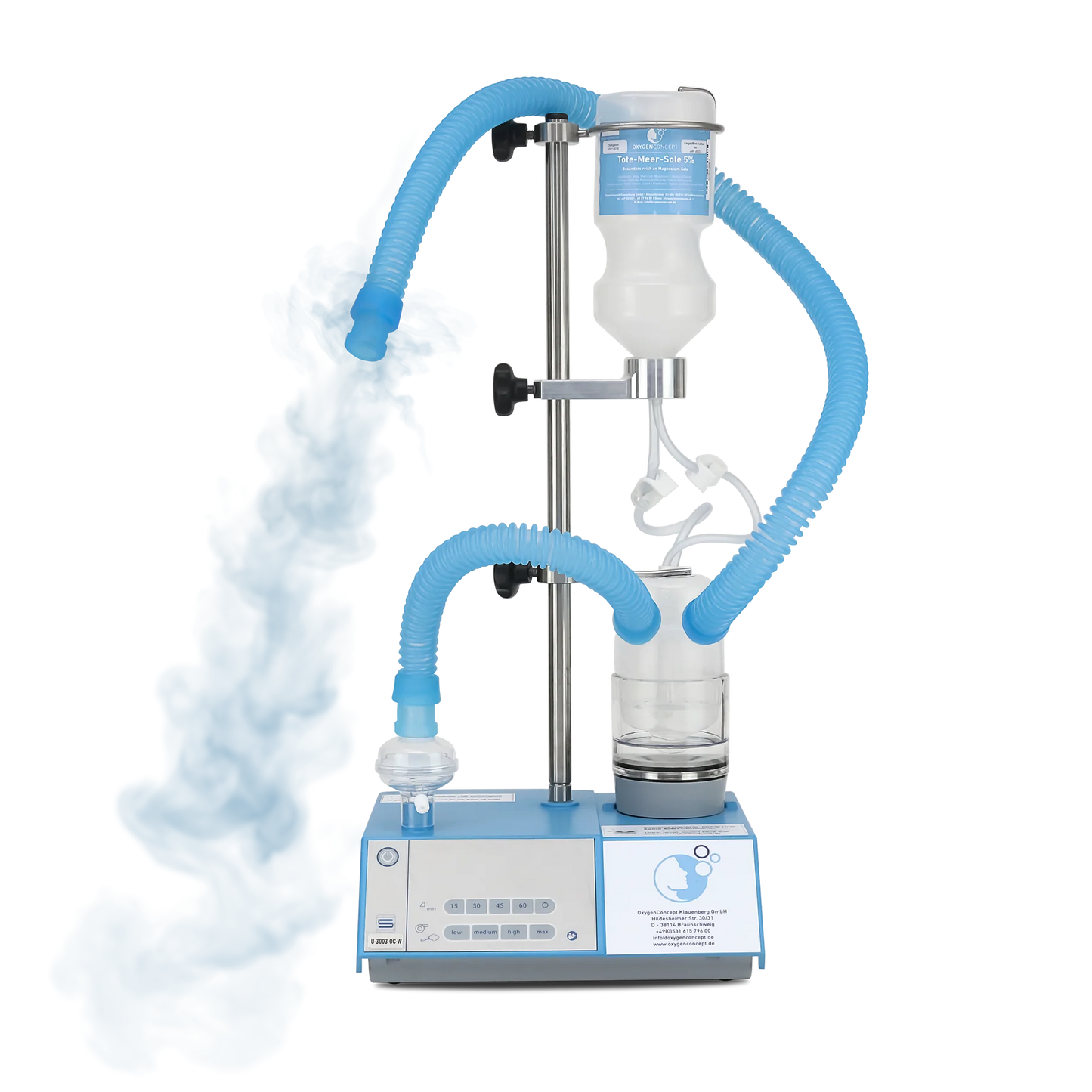

Ultrasonic nebuliser for respirable brine mist
Ultrasonic nebuliser for respirable brine mist
Pay in 3 monthly installments
Produces a dry and breathable brine mist indoors.
Scope of delivery:
- 1 Ultrasonic nebuliser Horse
- 1 liter of OXYGEN Dead Sea Salt-Brine 5 %
- 1 Bacteria filter
- 1 Silicon tube each 40cm and 100 cm
- 1 liter of distilled water for the transducer
- 1 transfer system
- 1 sealing plug
- 1 Kendall system (nebuliser chamber)
- 1 wall bracket
- Manual
- Special equipment available at extra charge
Technical specifications:
| Nebulisation performance | 0.5-3ml of water per minute |
| Aerosol spectrum | 1 - 7 µm (65%), 1 - 5 µm (45%) |
| Room size | up to 40 m3 |
| MMAD | 5.3 µm |
| Frequency | 1.68MHz |
| Air volume | 1.5-10 liters per minute (with bacterial filter) |
| Time preselection | 15 / 30 / 45 / 60 minutes, continuous operation |
| Operating voltage | 230 V AC / 50 Hz |
| Operating mode | continuous operation |
| Protection class | I |
| Degree of protection | IP 21 |
| Warranty |
24 months |
The information applies to mist and fan speed. Technical changes reserved!
Optional:
- You can also order a replacement transducer at the special price of EUR 312.00 net. The length of the silicone tube can also be optionally adjusted. When ordering, please specify the wall thickness for the appropriate wall bracket. Additional costs apply for optional lengths and increasing thicknesses. Terms of payment: payment in advance Delivery time about 2 weeks
